1/2inch Epoxy Precision Blunt Needle Dispense Tips
It features burr-free,polished,blunt stainless steel cannula with polypropylene double-helix luer lock hub for a secure fit to barrel reservoir. It is designedly compatible with EFD, Nordson, Techon, PVA dispensing Systems,served as competent replacement component.
|
Specification Table |
|||||
|
Specification |
Art no. |
Hub Color |
Lumen |
External Dia |
Length |
|

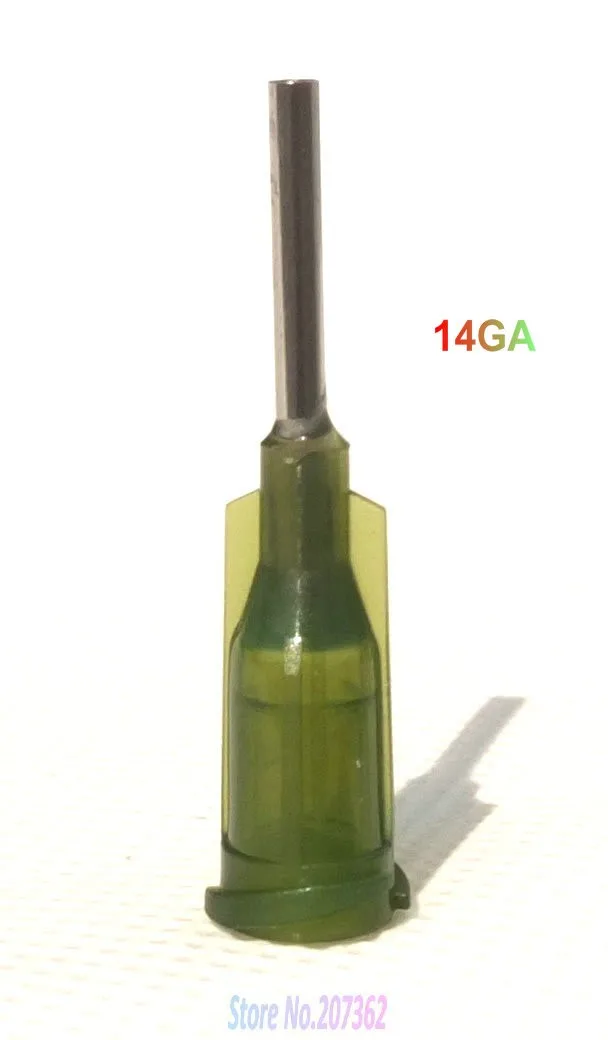

14 gauge |
ZY114050 |
Olive |
1.55mm |
1.84mm |
Cannula length :1/2inch overall length:30mm |
|
15 gauge |
ZY115050 |
Amber |
1.37mm |
1.81mm |
|
|
16 gauge |
ZY116050 |
Gray |
1.32mm |
1.6mm |
|
|
18 gauge |
ZY118050 |
Green |
0.84mm |
1.26mm |
|
|
20 gauge |
ZY120050 |
Pink |
0.6mm |
0.9mm |
|
|
21 gauge |
ZY121050 |
Purple |
0.51mm |
0.8mm |
|
|
22 gauge |
ZY122050 |
Blue |
0.41mm |
0.7mm |
|
|
23 gauge |
ZY123050 |
Orange |
0.34mm |
0.62mm |
|
|
25 gauge |
ZY125050 |
Red |
0.25mm |
0.5mm |
|
|
27 gauge |
ZY127050 |
Clear |
0.21mm |
0.4mm |
|
|
30 gauge |
ZY130050 |
Violet |
0.16mm |
0.31mm |
|
|
32 gauge |
ZY132050 |
Yellow |
0.11mm |
0.23mm |
|
|
34 gauge |
ZY134050 |
Cyan |
0.06mm |
0.19mm |
|
